WARNING

• In case of prolonged stoppage of vehicle, please turn off ignition switch to avoid discharge of battery.

WARNING

• Do not overfill the fuel tank.


• Fill fuel only till the bottom of anti splash plate.


• Over filling may result in gasoline entering the EVAP canister and may damage the Evaporative Emission System.

CAUTION

• Gasoline vapour is highly explosive, please ensure there are no open flames or sparks nearby while refueling and fill fuel only in a well ventilated area.


• Please ensure gasoline does not spill on painted surfaces. In case fuel spills over the painted surfaces wipe it off immediately as it may leave a permanent stain.


• Do not smoke while refueling or when fuel tank cap is open.

WARNING

• Do not overfill the fuel tank. Fill upto maximum fuel level & stop filling when the fuel reaches the bottom of Splash Arrestor. Failure to do so will lead to canister damage or can cause fuel spill out of fuel tank.


• Petrol is highly explosive. Please ensure there are no open flames or sparks nearby while refueling and fill fuel tank only in a well ventilated area.


• Please ensure petrol does not spill on painted surfaces. Wipe immediately in case fuel spills over as otherwise it will leave a permanent stain on the painted surfaces.

NOTE

• Key cannot be removed when fuel tank cap is open.

CAUTION

• In case of prolonged stoppage of vehicle, please turn off ignition switch to avoid discharge of battery.

WARNING

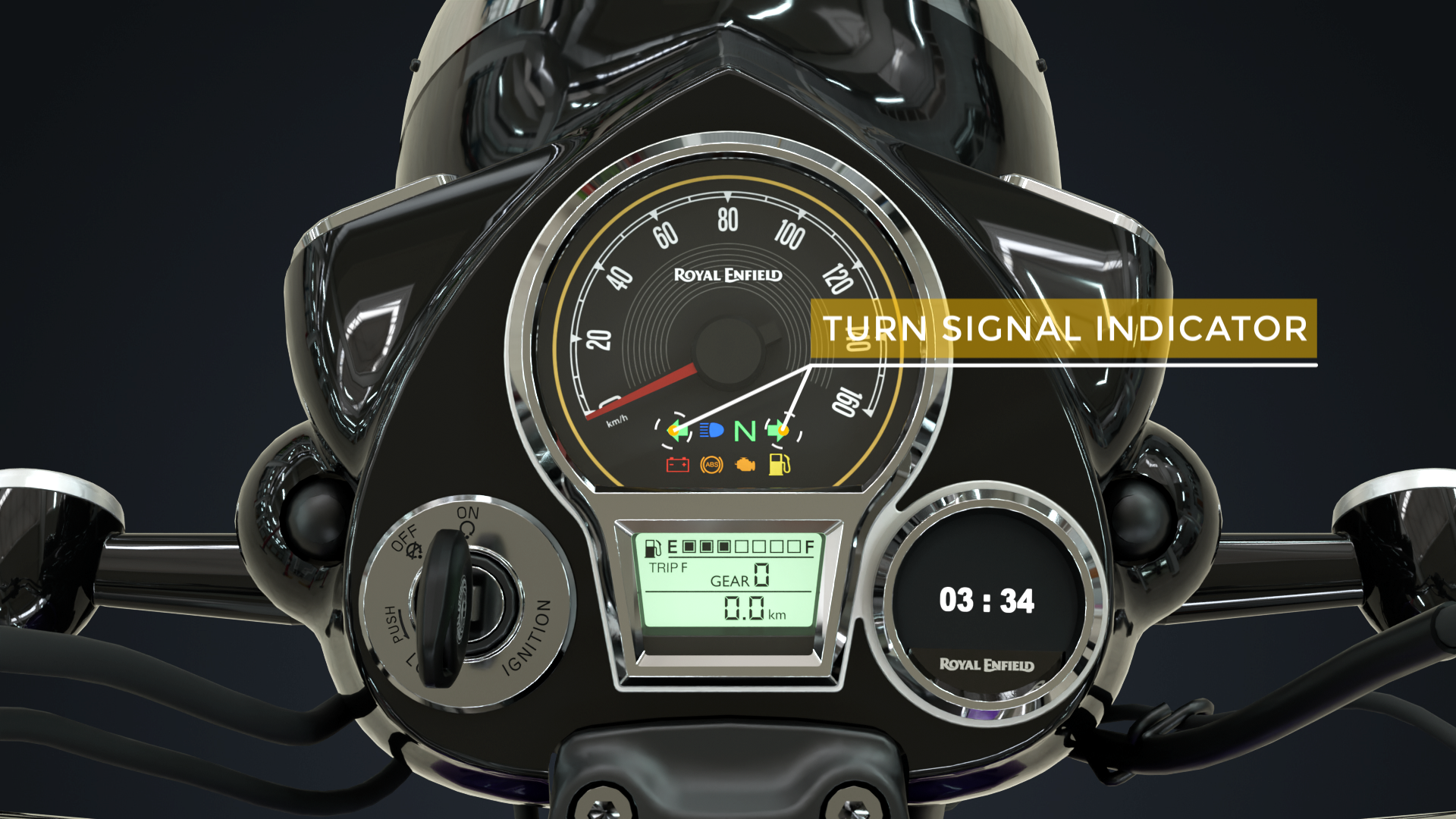

• Turn signals do not work when the hazard light switch is ON.


• All the trafficator lamps will flash simultaneously.

CAUTION

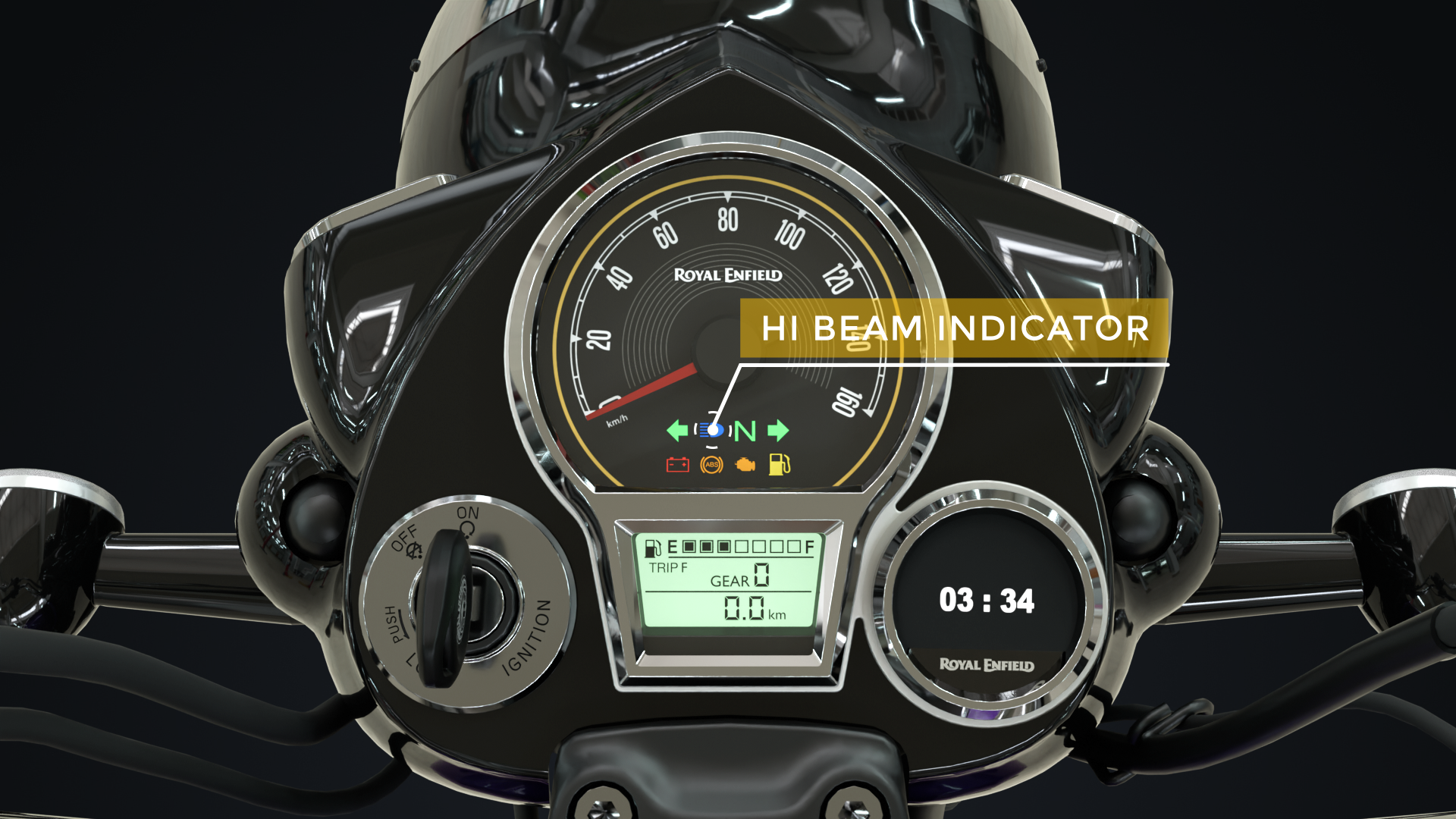

• Use appropriate headlamp beam high/low as per the traffic and road conditions for your safety and to avoid inconvenience to other riders.

NOTE

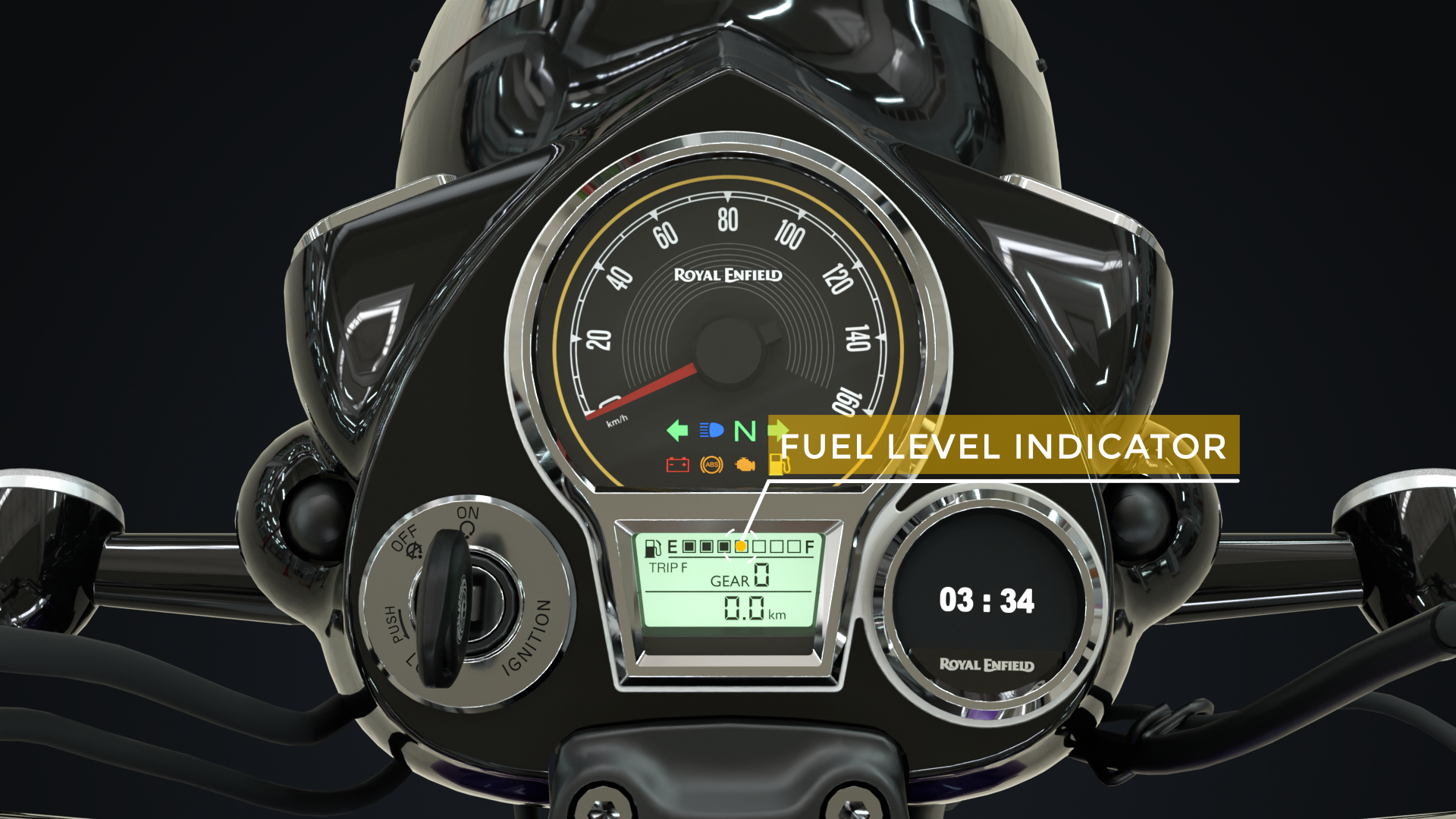

• Fuel Indication will vary on rough road, uphill and downhill conditions, for accurate indication refer during slow speed or flat surfaces.

CAUTION

• Ensure ignition is ON and display is in powered while establishing connection.


• Ensure first time pairing is done in isolated environment to avoid cross connections (one time).


• Day and night mode is user selectable only, will not change over automatically to be selected during night driving to avoid rider distraction.
• Bluetooth connection can be established only through RE Mobile app.


• Ensure bluetooth and location settings are turned always ON before usage.


• Disable battery optimisation settings / low battery cut-off setting of smartphone for navigation to work in low battery mode.


• RE Mobile app works only with Android (Current Version (-2)) and iOS (Current Version (-1)) versions, for other lower versions performance lag can be expected.

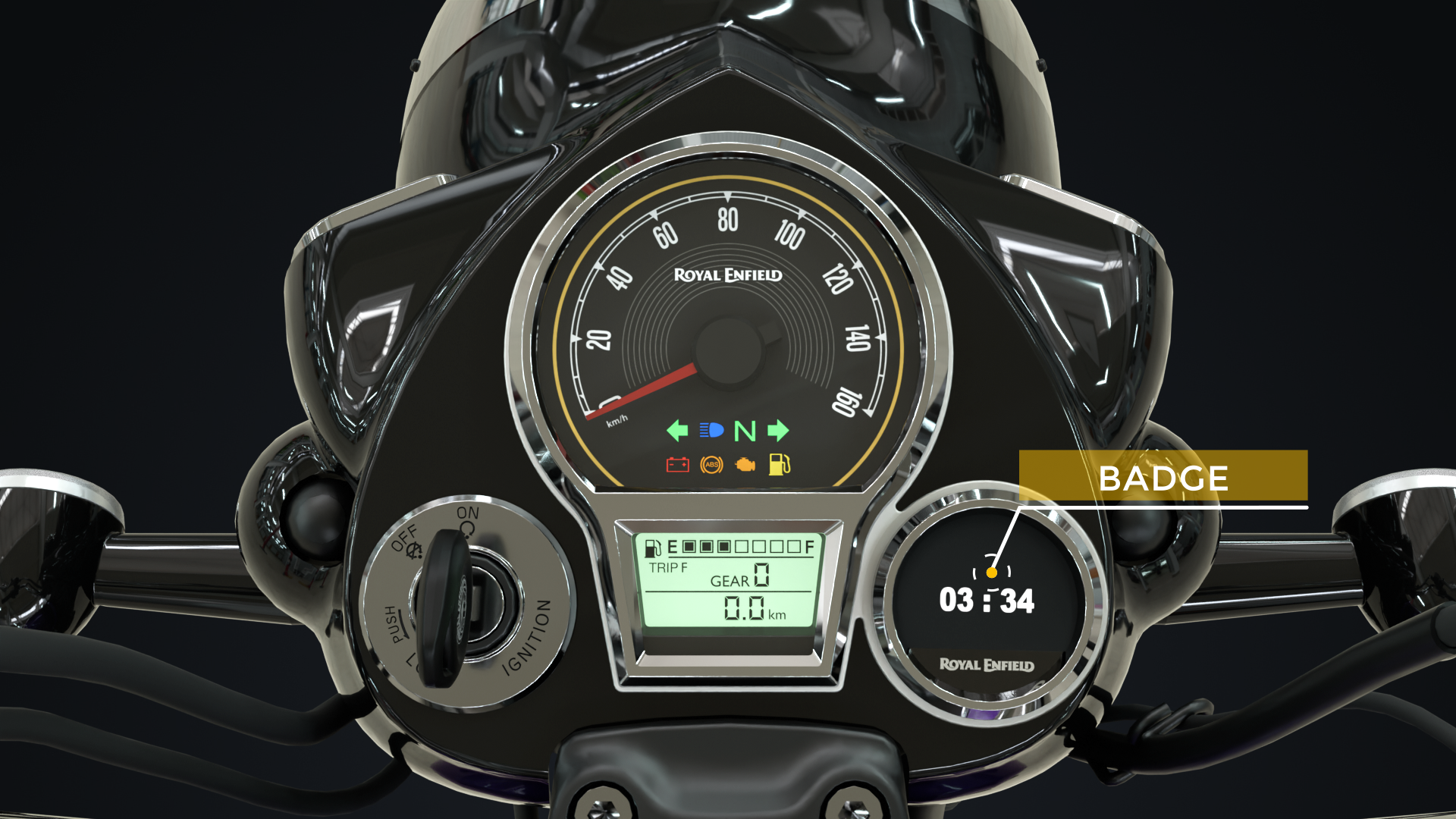

• Tripper bluetooth is 4.2. Tripper time display may have a mismatch with actual time displayed in mobile device once the Bluetooth connectivity is lost.


• RE Mobile app works with bluetooth V4.2 and N+1.0, for other lower versions performance lag can be expected.


• Check for network signal strength in case of navigation lag.


• Check for data speed in case of navigation lag, navigation system performance is better in 4G band compared to other lower versions.


• Calibrate mobile phones frequently for more GPS accuracy & location accuracy is dependent on.

NOTE

• After every Ignition 'ON' cycle tripper will be in discoverable mode for 120 seconds.


• Incase there is no connection established within 120 seconds. Display will enter into clock mode, to reinitiate connection ignition 'OFF-ON' cycle to be repeated.


• During navigation mode if there is no input from smartphone for 5 seconds, bluetooth connection will be terminated to avoid power draw and will display clock.


• Bluetooth connection can be terminated by end user also by closing the mobile application.


• For first time pairing user needs to enter the secured pin shown on tripper through RE Mobile app to setup the device, after that auto-pairing will happen if same device is connected.


• Every time the tripper is paired the clock time will sync with mobile time after which it will continue to run with internal clock even in case of disconnection, there will be time difference between time shown on instrument cluster and tripper - customer needs to update cluster clock in line with time shown on tripper as and when required as mentioned in push button management of cluster.


• Do not apply or use gasoline / petrol related fluids for cleaning or wiping on instrument cluster or tripper, as it may result in permanent damage to the same.

WARNING

• Recommended not to use in rainy conditions to avoid damages to smart phones and charger. RE shall not be liable for any damage to smart phones.


• Do not use any other device other than mobile phones, only one mobile shall be charged at one point of time.


• Ensure proper insertion of USB cable, damages due to hard/wrong insertion of cable will not be entertained in warranty.


• Do not leave the USB port cap partially opened/closed to avoid any short circuit when not in use.


• Do not insert any metal or conductive materials inside USB charging port which may lead to short circuit.

CAUTION

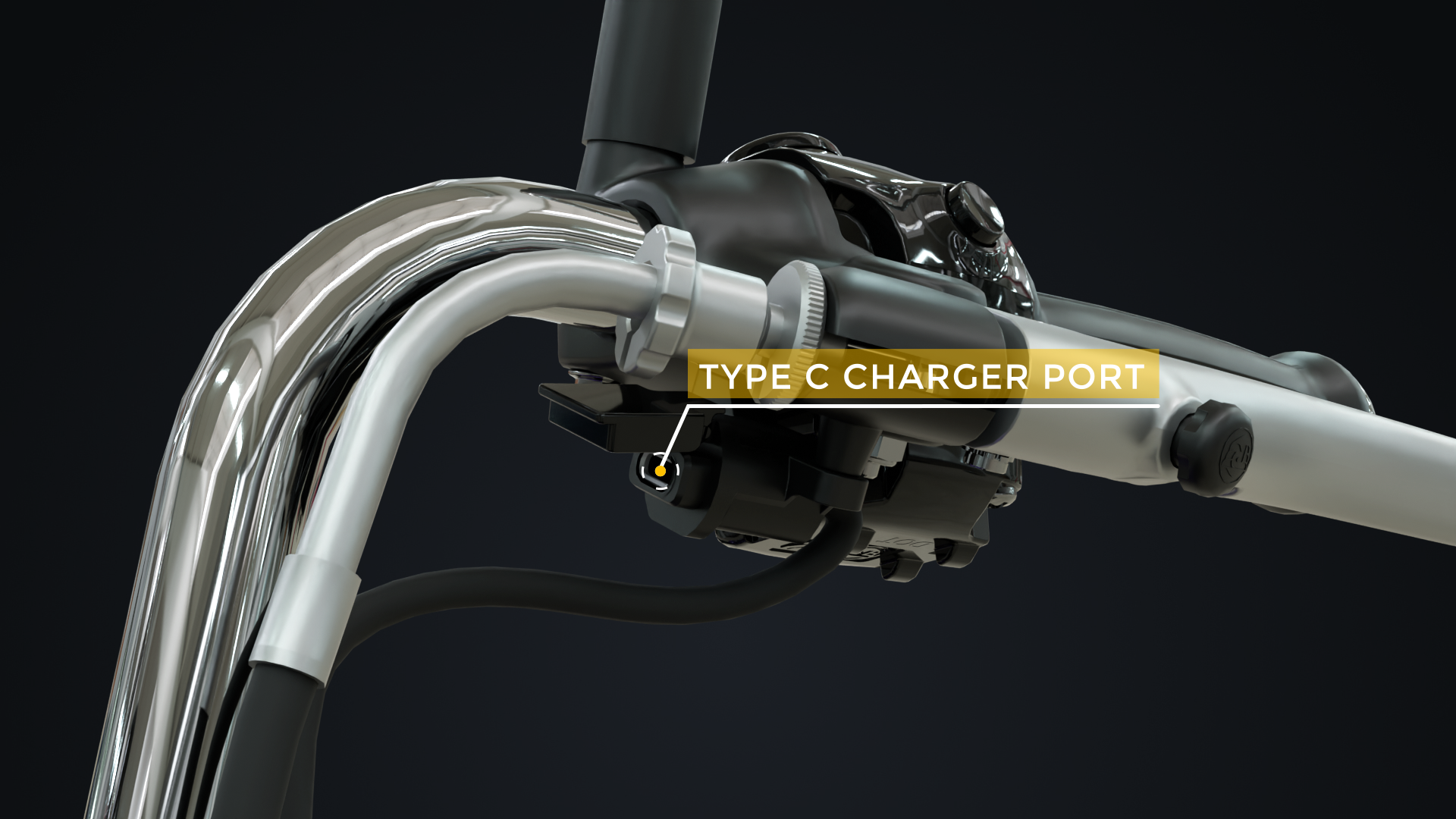

• Customer to ensure USB port cap is closed and locked properly when not in use, warranty will not be provided if port cap is damaged and not sealed properly.


• If high current draw greater than 2.5 A is observed USB charger will shutdown please check your smart phone battery current ratings before using.


• USB charger will function only when engine is in running condition.


• Use standard approved and high quality USB cables for proper functioning.

NOTE

• Charging port is provided only for charging purpose and no data transfer is enabled.


• Only constant charging mode is provided, fast/dash charging is not provided to be compatible with multiple make mobile phones and cannot be compared with performance of original smart phone chargers.


• Duration of charging can be higher and will vary for different make mobile phones depending on smart phone battery capacity SOC and smart phone charging circuits.

WARNING

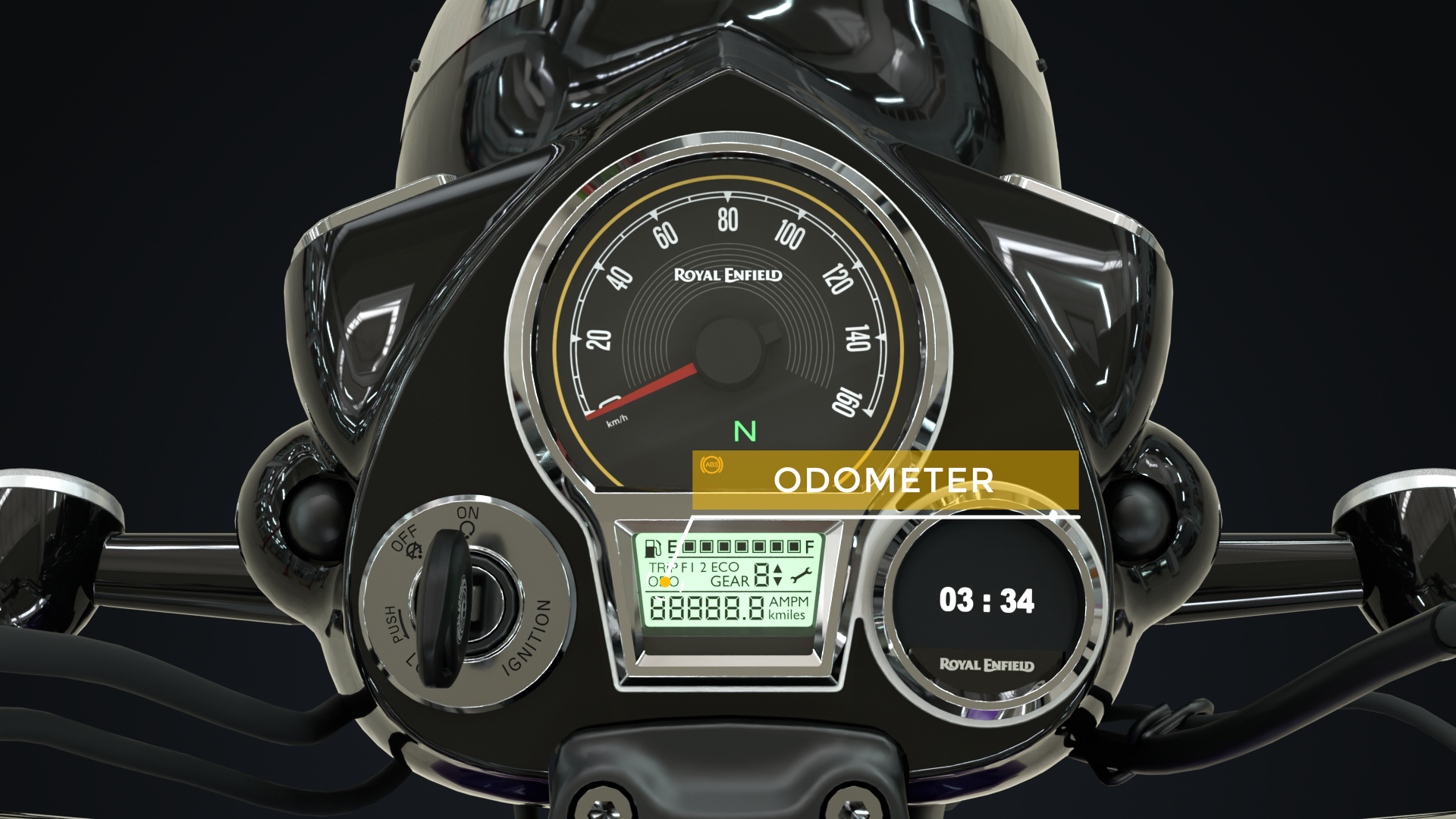

• It is illegal to tamper with the odometer display or reset the total kms/miles, the motorcycle has covered.


• It is illegal to ride the motorcycle after disconnecting the speed sensor of the motorcycle.

undefined

NOTE

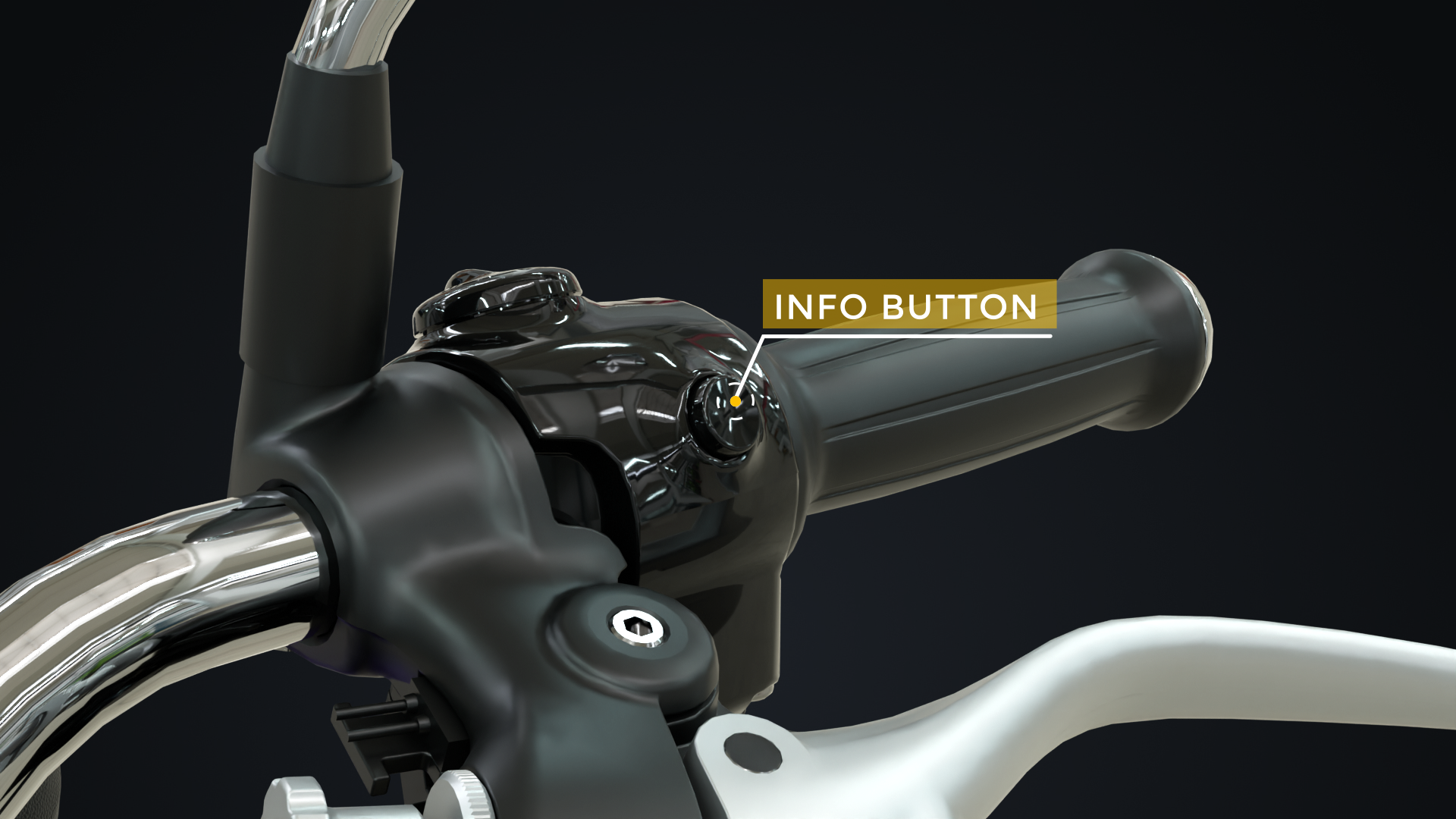

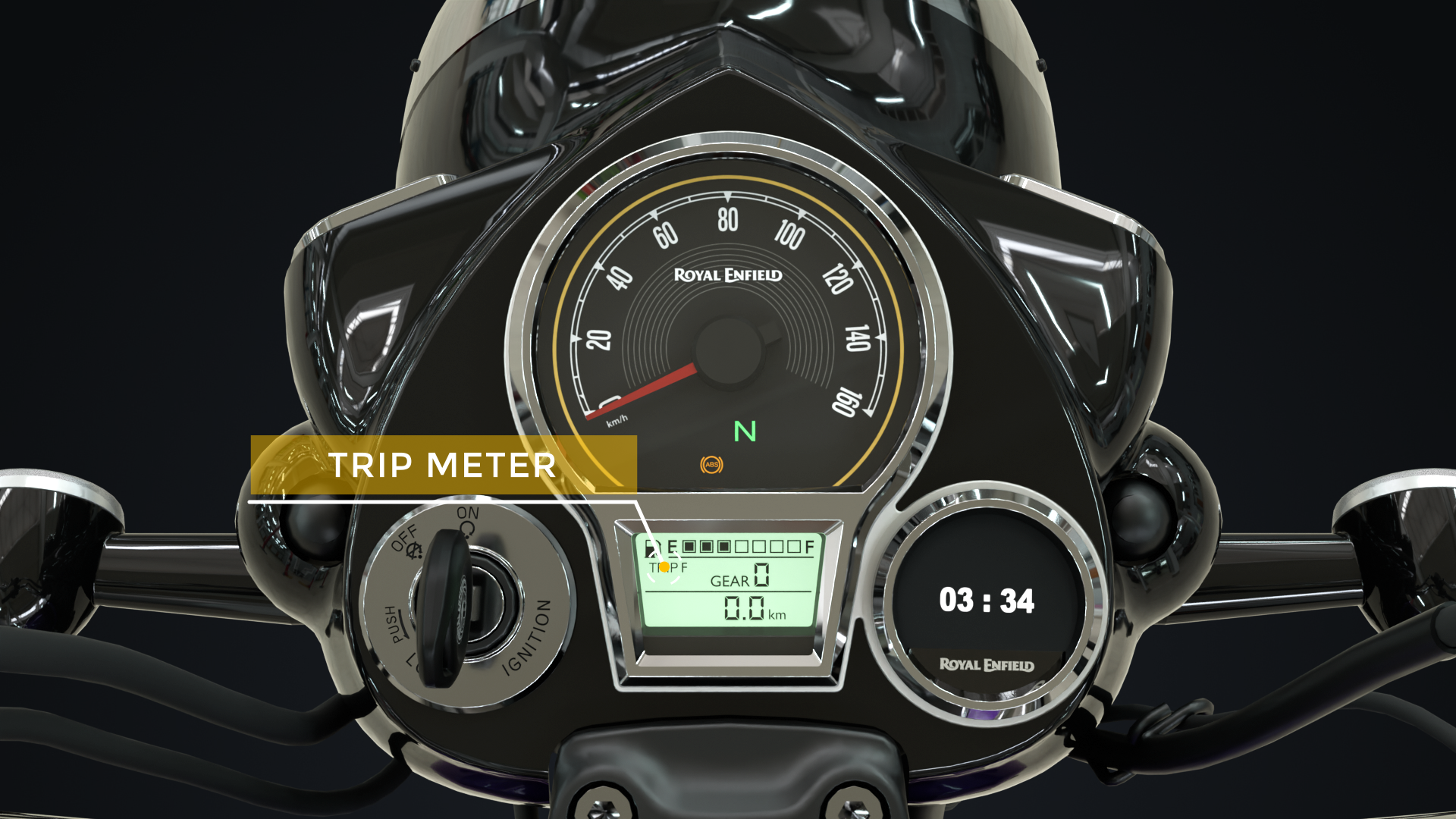

• For trip re-set press info button for T>3 seconds.

WARNING

• Never attempt to operate the info buttons while riding the motorcycle. Doing so will cause loss of concentration and unstable riding, leading to a potential accident. Resulting in serious injury to both rider and other road users, besides causing severe damage to the motorcycle.

CAUTION

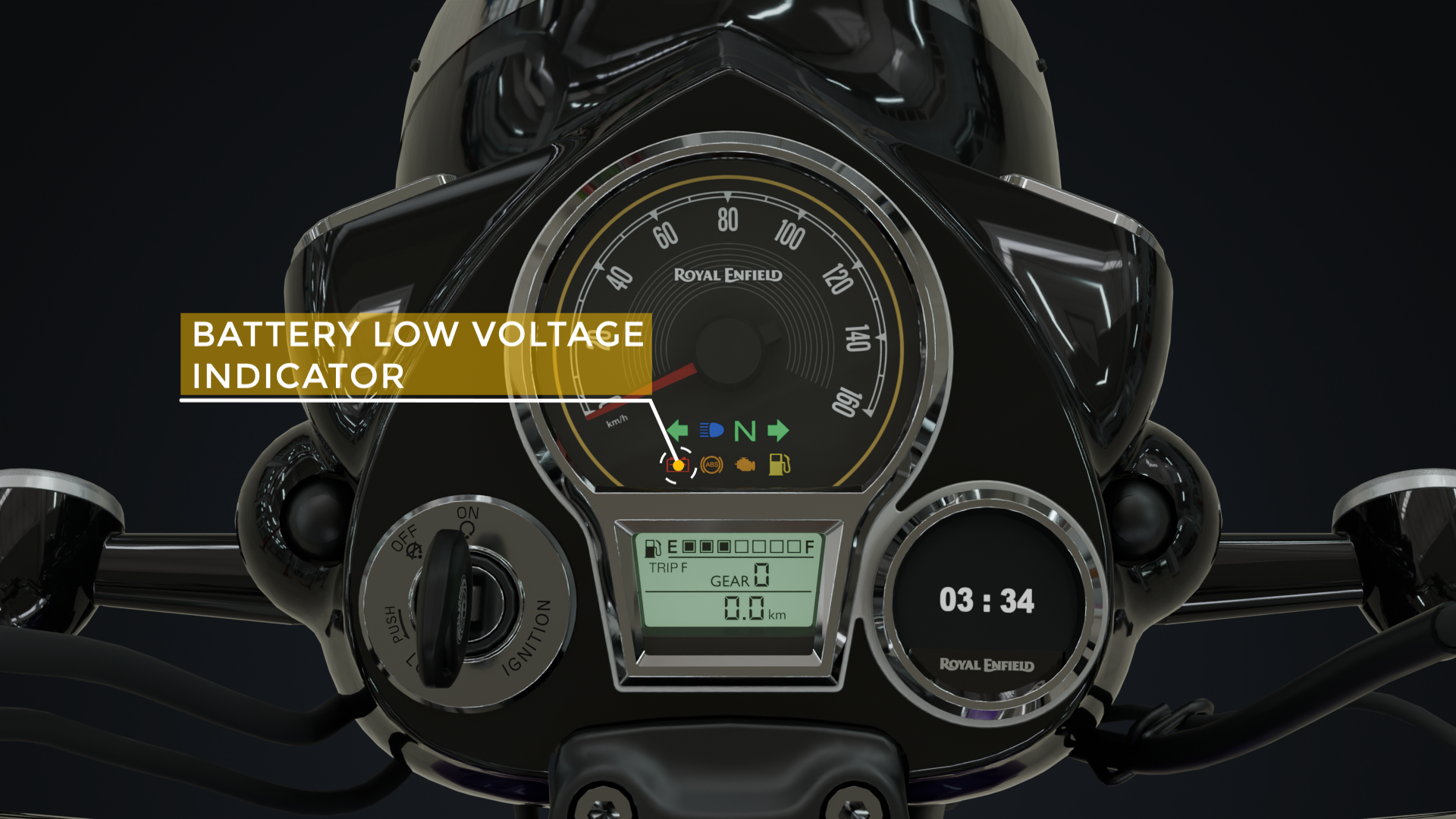

• DO NOT ride the motorcycle if the battery low voltage indicator is glowing continuously and please get the charging system checked through an Royal Enfield Authorised Service Centre immediately.

WARNING

• Always use the approved front/rear tires and sprockets by Royal Enfield to ensure correct ABS operation.


• Do not make any changes to the suspension travel.


• Only use recommended spare parts on the brake system which have been approved by Royal Enfield.

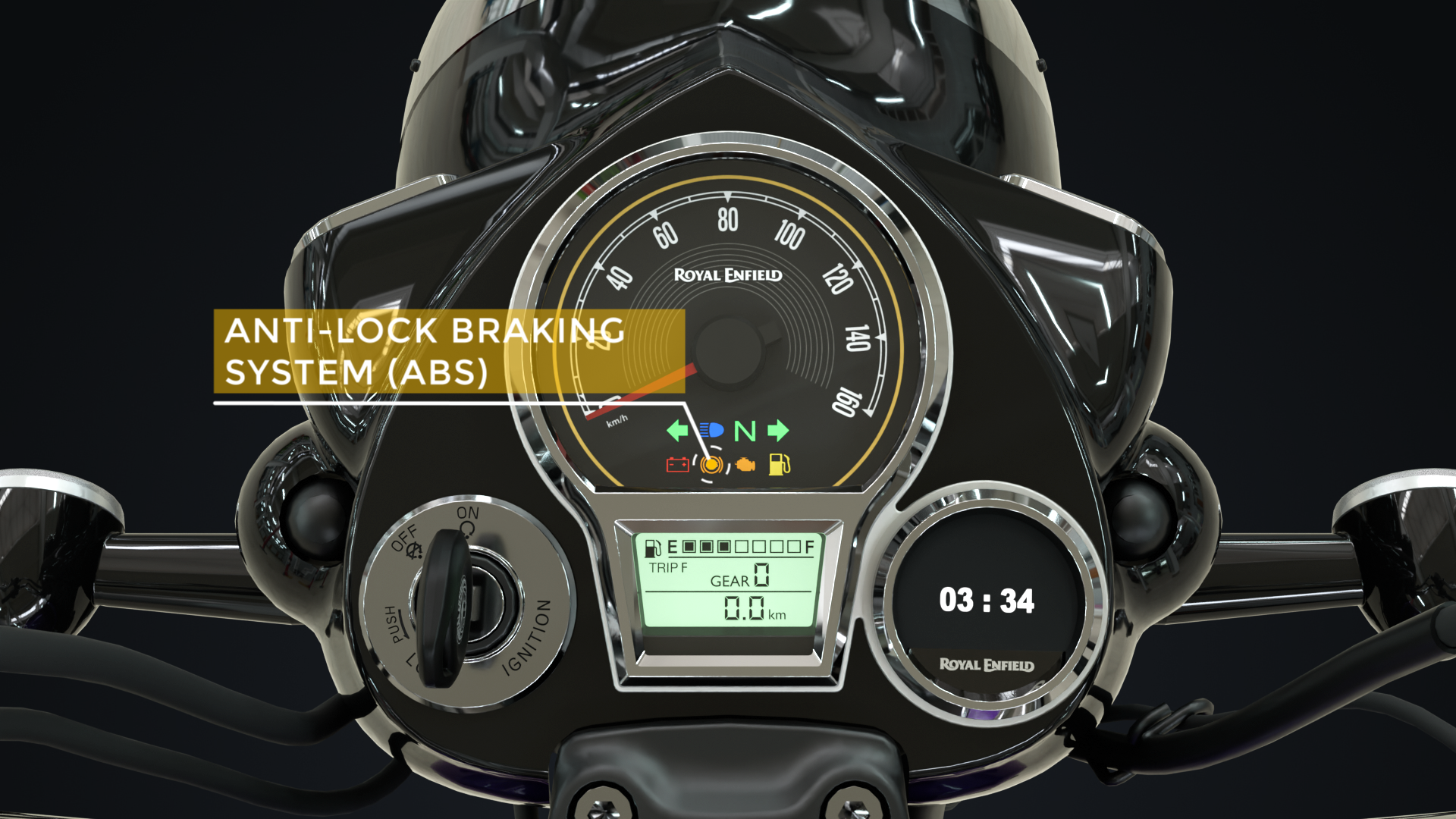

• ABS does not reduce braking distance. In certain circumstances. ABS may result In a longer stopping distance.

CAUTION (ABS)

• ABS is a safety feature to help prevent locking of wheels during panic application of brakes. It is by no means a substitute for good riding practices and anticipatory braking.


• Please ride carefully and apply brakes cautiously, especially while cornering. ABS cannot estimate the “weight shifts” and momentum of the motorcycle while negotiating a corner and therefore prevent skidding due to loss of traction.


• Please anticipate the stopping distance required for the speed of travel and apply brakes well in advance so as to bring the motorcycle to a safe stop.


• Ensure instrument cluster is in proper functioning as it is an integral part of ABS system.


• Please apply both brakes simultaneously to stop with better traction and control of the motorcycle.


• Failure to adhere to the above can cause an accident resulting in serious injuries and loss of life.


• Visually Inspect for damaged teeth on the hoot and rear ABS tone rings.


• Inspect for damages and dents on the face of the teeth.


• The teeth edges should be consistent in appearance. In case If a toner ring is found to be damaged or bent, it is recommended to visit nearest dealership for necessary action.


• Inspect for debris at the end of the wheel sensors – Front & Rear. If Contamination is observed, it is recommended to clear it suitably or you may visit to near dealership for necessary action.

NOTE

DO’S


• While starting the engine do check the ABS indicator glows 'ON' and turns 'OFF' when the vehicle speed exceeds 5 km/h.


• Please check the brake fluid at “MAX” level in the front and rear brake reservoir and ensure there is no leak in the brake systems.


• Apply both the brakes simultaneously for better efficiency.


• In the event of the ABS indicator remaining continuously 'ON', please take the motorcycle to a nearest Authorised Royal Enfield Service Centre to inspect the brake system.

DONT'S


• DO NOT RELEASE the brake lever/pedal when pulsations are felt during hard application of the brakes in an emergency situation. The pulsations only indicate that the ABS is activated.


• DO NOT APPLY only the front or rear brake as it can lead to inefficient braking.

CAUTION

• Ensure ignition is ON and display is in powered while establishing connection.


• Ensure first time pairing is done in isolated environment to avoid cross connections(onetime).


• Day and night mode is user selectable only, will not change over automatically to be selected during night driving toavoid rider distraction.


• Bluetooth connection can be established only through RE Mobile app.


• Ensure bluetooth and location settings are turned always ON before usage.


• Disable battery optimisation settings/low battery cut-off setting of smartphone for Navigation to work in low battery mode.


• RE Mobile app works only with Android and iOS versions, for other lower versions performance lag can be expected.


• Navigation display device Bluetooth version is 4.2.


• RE Mobile App works with bluetooth version 4.2 and N+1.0, for other lower versions performance lag can be expected.


• Check for network signal strength in case of navigation lag.


• Check for Data speed in case of navigation lag, Navigation system performance is better in 4G band compared to other lower versions.


• Calibrate mobile phones frequently for more GPS accuracy & location accuracy is dependent on.

NOTE

• After every Ignition ON cycle Navigation display unit will be in discoverable mode for 120 Secs.


• Incase there is no connection established within 120 secs display will enter into clock mode, to re-initiate connection Ignition OFF-ON cycle to be repeated.


• During Navigation mode if there is no input from smartphone for 5 Secs, Bluetooth connection will be terminated to avoid power draw and will display clock.


• Bluetooth connection can be terminated by end user also by closing the mobile application.


• For first time pairing user needs to enter the secured pin shown on navigation display unit through RE Mobile App to setup the device, after that auto-pairing will happen if same device is connected.


• Everytime the Navigation display unit is paired the clock time will sync with mobile time after which it will continue to run with internal clock even in case of disconnection, there will be time difference between time shown on instrument cluster and Navigation display unit - customer needs to update cluster clock inline with time shown on Navigation display unit as and when required as mentioned in push button management of cluster.

WARNING

• For your personal welfare and safety, all the points mentioned above should be performed periodically. Failure to do so may affect safe operation, damage your motorcycle and could result in an accident causing serious injury or losss of life.

WARNING

• Please exercise extreme care while riding the motorcycle. Failure to do so can result in an accident causing injury to you or to other road users / passerby.

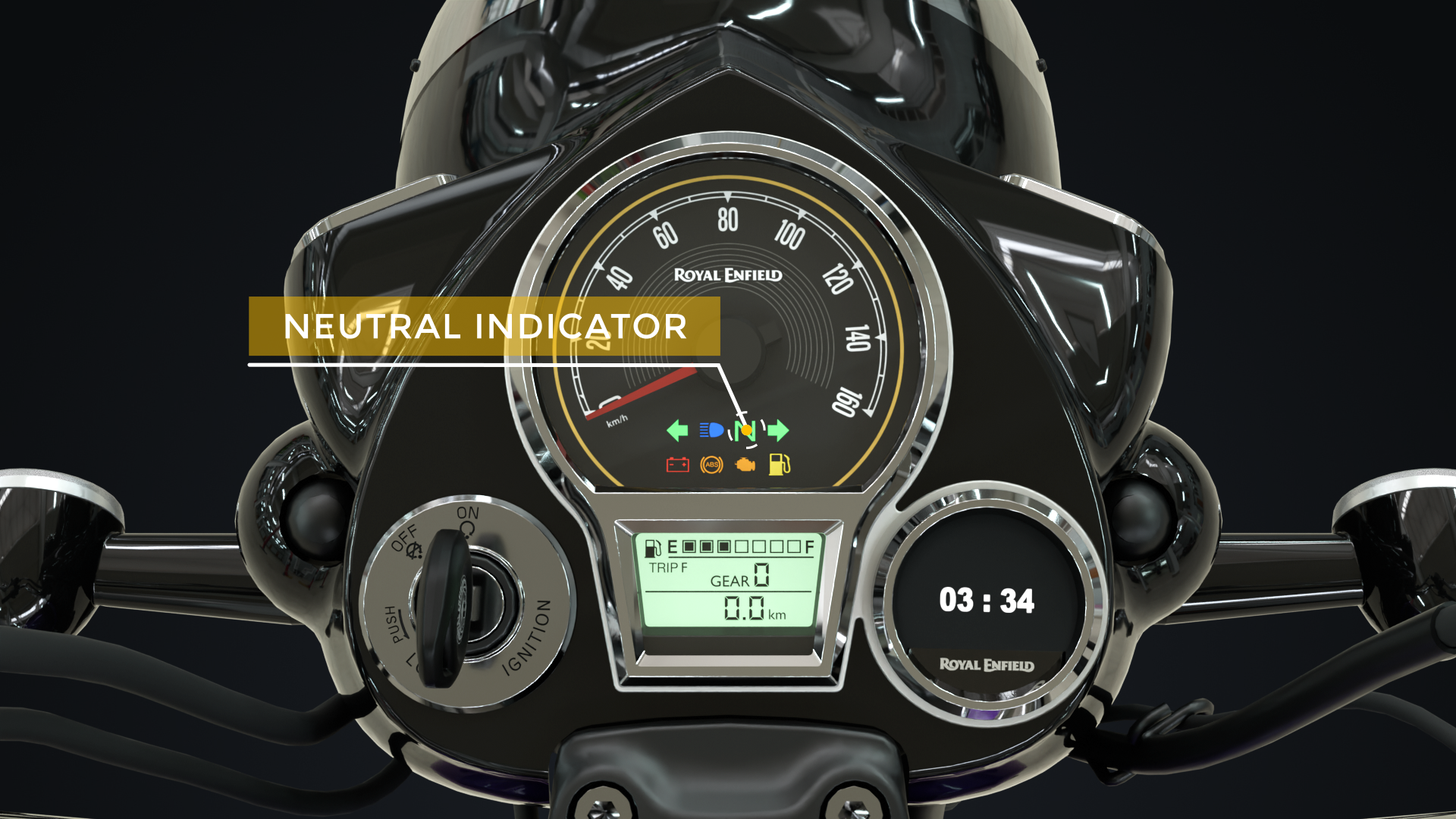

• Ensure gear is in neutral position and the neutral lamp is glowing in the instrument cluster. To shift into neutral, move the motorcycle back and forth gently, while simultaneously shifting the gear.

CAUTION

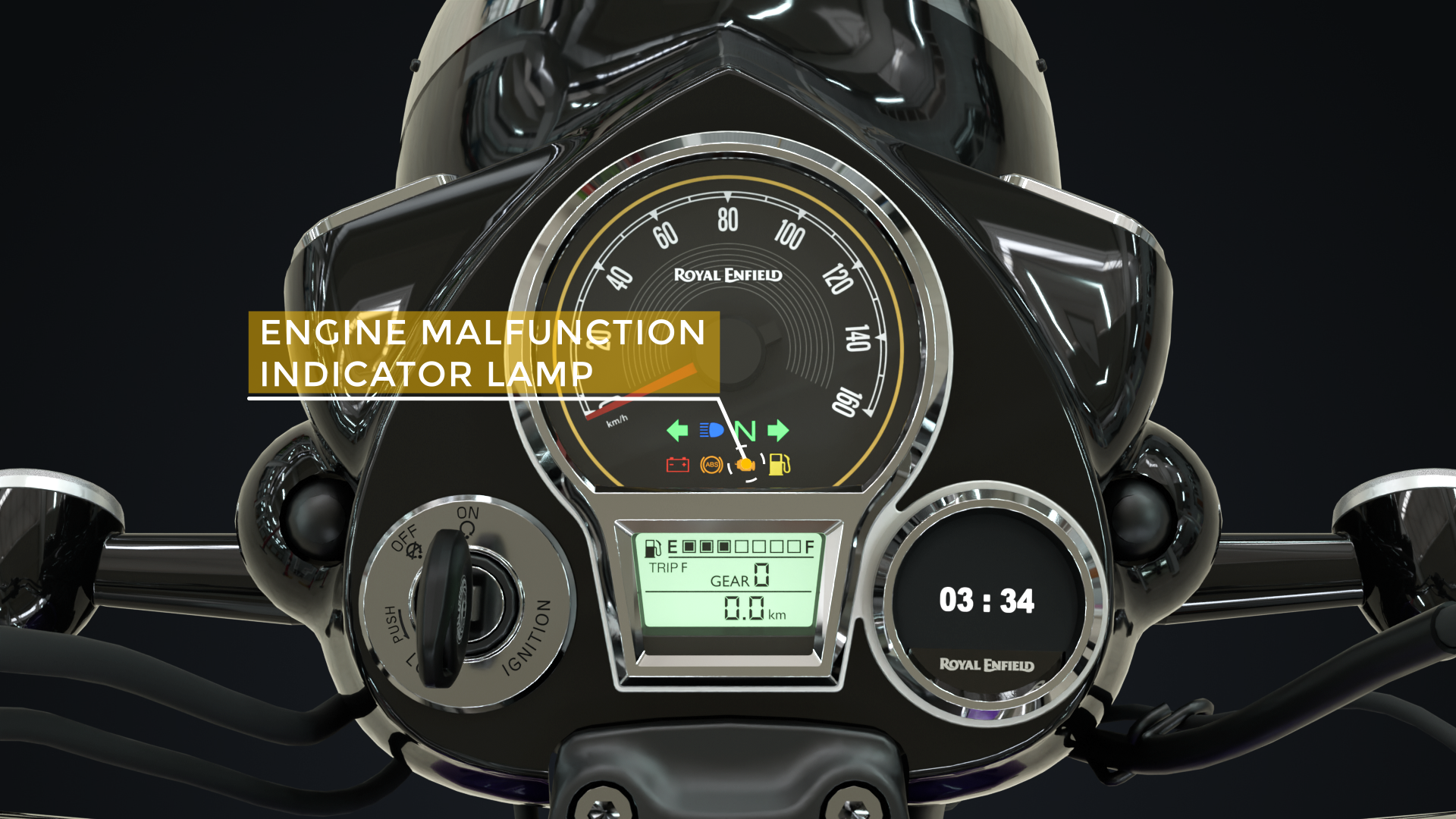

• In case the malfunction indicator DOES NOT turn 'OFF', get the motorcycle checked through an Royal Enfield Authorised Service Centre for rectification.


• Check the fuel level indicator in the cluster for adequate fuel in the fuel tank. In case the last bar is blinking continuously, it indicates low fuel leve l in the tank. Please re-fuel immediately.


• Disengage clutch by pulling in the clutch lever and hold it in depressed condition.


• Push and hold electric start switch until engine starts for a maximum of 5 seconds.


• If the engine does not start. DO NOT hold the starter switch in depressed condition for long periods, this will cause the battery to drain below the threshold level of 10 V. Please get the motorcycle checked through an Royal Enfield Authorised Service Centre to identify and correct the reason for not starting.


• Never accelerate as soon as the engine starts, especially in cold condition. The engine should be allowed to run in idle RPM for at least 120 seconds for the engine oil to circulate and lubricate all the internal moving parts and for the engine temperature to raise. Failure to adhere to this important information will cause serious damage to the engine internals.


• Accelerate only after the idling rpm has stabilized and it is consistent.


• Ensure side stand is in fully retracted position. Failure to do so will cause the engine to switch “OFF” as soon as gear is engaged.


• Do not attempt to shift gears without moving the motorcycle back and forth as it will damage the gears mechanism.


• Depress and hold the clutch lever.


• Press Starter Button and hold till Engine starts. Do not release the button before Engine starts.


• Do not press the starter button more than 5 sec. After three successive cranking, wait for 15 to 20 seconds the battery to recover.

NOTE

• Once the kill switch ON, then only N (neutral) tell tale will glow in instrument cluster.


• In case the engine does not start within 5 second, release starter switch and wait for about 5 second before attempting to start the engine again.


• In case vehicle not starting on multiple continuous attempts, please turn 'OFF' and turn 'ON' ignition switch and then start again.

CAUTION

• If the clutch lever is released abruptly and throttle opening is done insufficiently the motorcycle will have a rough start and cause the engine to stall.


• If the acceleration is very high and clutch lever is released abruptly, it will cause motorcycle to move suddenly, which will lead to loss of control leading to an accident resulting in injury and or loss of life to rider / other road users / passed by, besides damage to the motorcycle.


• Always exercise utmost caution while releasing clutch and riding the motorcycle.


• Follow the recommended upshifting and downshifting speeds.

NOTE

• Always start motorcycle with gear in neutral position.


• Always move the motorcycle in first gear position only.


• When engine speed decreases or while climbing a gradient or running at a reduced speed, shift to the appropriate lower gear to prevent the engine from stalling or straining to pull.


• The clutch lever must be fully depressed, throttle modulated and immediately shifted to text gear as per recommended gear shifting speeds.


• Failure to follow the above may cause a rough start or stalling or improper gear shifting of the engine besides causing damage to transmission parts.


• Always shift gears to neutral position just before bringing the vehicle to a complete stop.


• Close throttle fully and release the clutch lever slowly ensuring the motorcycle is in neutral position and neutral lamp is glowing.


• Stop the motorcycle in a safe place, turn OFF ignition and switch OFF engine kill switch.


• While riding on steep slopes and descending long roads it is recommended to use the brake intermittently along with engine braking in a combined way to achieve effective braking. Engine braking is achieved by performing downshifting of the gear from the current gear to slow down the vehicle.


• Lock the steering and ensure the handle bar is locked firmly before removing the key from the ignition barrel.

WARNING

• Ensure both stands are fully retracted before riding the motorcycle.


• Please exercise extreme care while parking and ensure it is parked on a firm and flat surface to avoid the motorcycle from falling over and causing injury to you or to others and damage to the motorcycle parts.


• The side stand is only designed for the weight of the motorcycle. Do not sit on the motorcycle when it is resting on the side stand. The side stand or frame may become damaged and the motorcycle may fall over.
