The fuse carrier is located inside the right side panel.
Insert ignition key and turn it clockwise.
Pull the side panel outside for opening the same.
Share link
WARNING
Please get the electrical system of your motorcycle checked thoroughly and get the faults corrected immediately after experiencing any fuse failure. Failure to do so many result in repeated fuse failure.
Usage of fuses other than specified rating will damage the complete electrical system. Please ensure to replace a spare fuse in the holder at the earliest opportunity.
Any attempt to jumper a defective fuse gives rise to the risk of a short-circuit and fire. Always replace a defective fuse with a new fuse of the same rating.
NOTE
Make sure the ignition switch is in OFF position when replacing the bulbs, fuses and electrical parts.

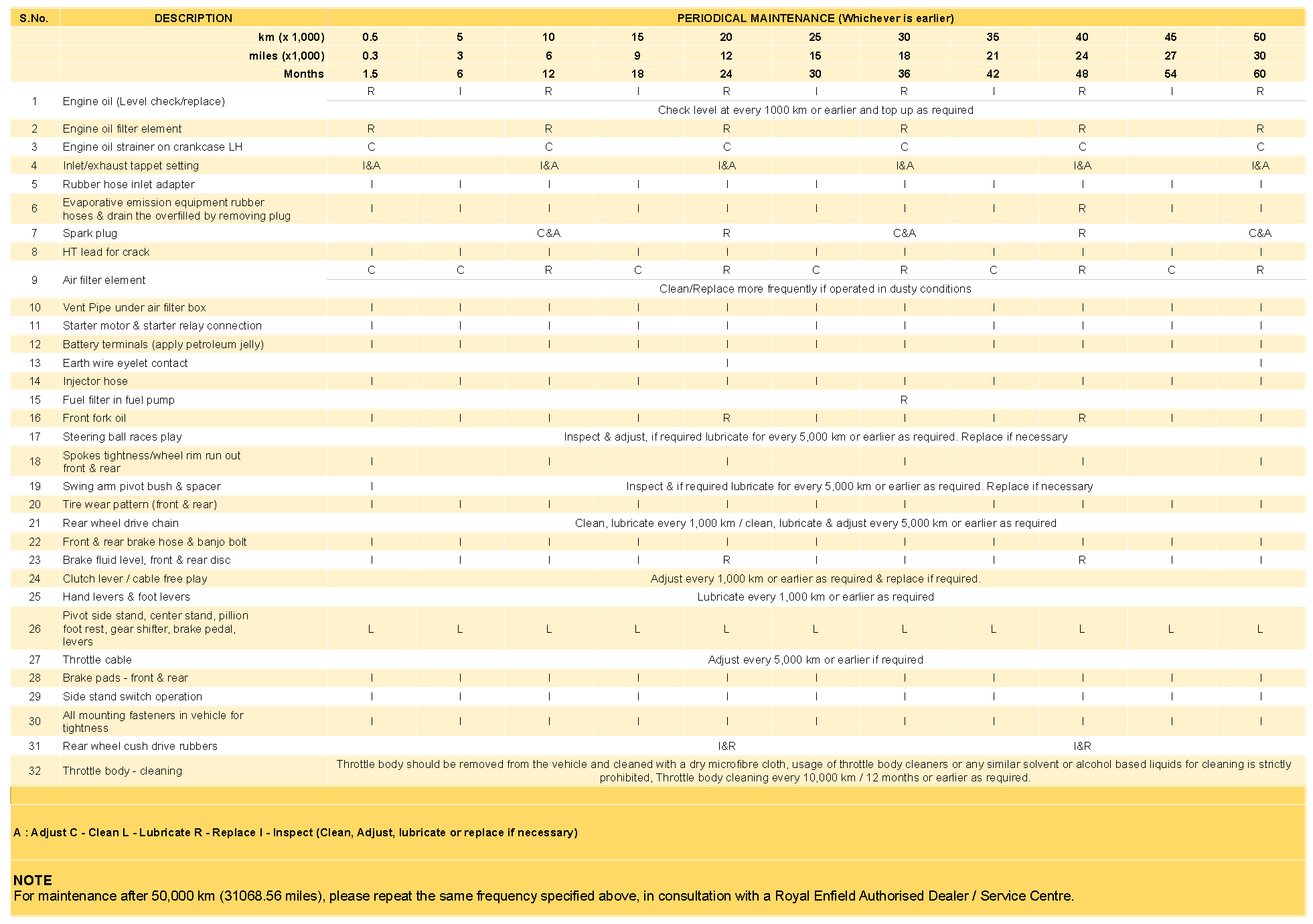

Periodic Maintenance
The maintenance schedule detailed here will help you to maintain your Bullet 350 motorcycle meticulously to get along trouble free service. The schedule provided herein is based upon an average riding conditions and indicates the km at which regular inspections, adjustments, replacements and lubrications are to be carried out. The frequency of the maintenance must be shortened depending upon the severity of the driving condition or if the motorcycle is used in a very dust environment. Contact the nearest Royal Enfield Authorised Service Centre for expert advice and to carry out the required maintenance.
Click here to view image
Share link
NOTE
For maintenance after 50,000 km (31068.56 miles), please repeat the same frequency specified above, in consultation with a Royal Enfield Authorised Dealer / Service Centre.

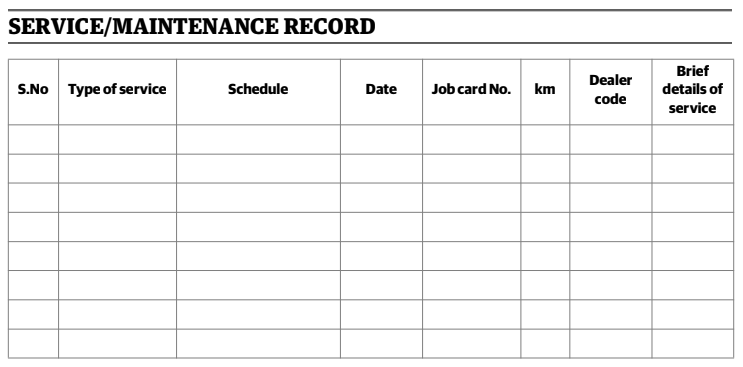

SERVICE / MAINTENANCE RECORD
Click here to view image
Share link
NOTE
Cost of parts, lubricants, filters and other consumables are chargeable to the customer on their respective service activities. Refer the periodic maintenance chart for the respective service activities.
* Labour is free for this services alone.
RECOMMENDED LUBRICANTS
Click here to view image
Share link
CAUTION
Use of wrong oil grade will reduce the life of the moving parts and seriously affect performance.
* Do not mix DOT 4 & other brake fluids together.
NOTE
Recommendation subject to change without notice.
The above values are approximate and the actual capacity will vary.
WARRANTY TERMS AND CONDITIONS
Royal Enfield Motorcycles are manufactured by following best quality practices in respect of the material and workmanship. Royal Enfield (RE) warrants its motorcycle to be free from manufacturing and material defect under normal use subject to following conditions.
Warranty shall be in force until the expiry of a period of 36 months from the first date of sale to the first customer and to any subsequent owners for the balance of the remaining period, until expiry of 36 months from the date of first sale/registration of the motorcycle.
In order to avail warranty benefits by second or subsequent owner the second/subsequent owner should inform the nearest Royal Enfield Service Centre about the purchase of the bike and shall fill in the requisite details in the form as requested by Royal Enfield.
The warranty shall be applicable only if all the services are availed in the respective period/kilometer ranges as per the schedule in the owner's manual from RE Authorised Dealer/Service Centre.
During the warranty period, RE's obligations shall be limited to repairing/replacing part(s) of the motorcycle for free only if the part(s), on examination is deemed to have a manufacturing defect. Defective part(s) which have been replaced will become the sole property of RE.
Consumables like oil, oil filter, fuel etc. used during warranty repair/replacement are not covered and chargeable to the customer.
Claims on proprietary items like tyres, tubes, spark plug, battery etc., should be taken up with the respective manufacturer or their authorised agents in the area directly by the customer. RE shall not be liable in any manner to replace them through their dealers. RE will, however, provide assistance in referring such claims on the respective manufacturer.
Warranty shall not apply to:
(a) Normal ageing, deterioration or rusting of plated parts, paints coat, rubber parts, soft items, glass items, plastic parts etc.
(b) Components like oil filter, air filter paper element, control cables, brake pads, clutch assembly, drive chain & sprocket kit, steering ball races, electrical equipment, wiring harness etc., which are subjected to normal wear and tear.
(c) Failures occurred due to use of non recommended grade lubricants, fuel or improper level.
(d) Damages due to use of non-genuine parts, lack of proper maintenance, incorrect riding habits.
(e) Damages to engine management system parts (like ECU, throttle body, sensors, etc.) due to tampering which affects the performance of the motorcycle.
(f) Parts damaged due to accidents, collision, abuse etc.
(g) Irregularities not recognised as affecting the quality or function of the motorcycle such as slight vibration, oil leakage, discoloration of exhaust pipe bend and cat region / silencer / soft or hard shock absorber etc.
(h) Warranty is not applicable for discoloration of exhaust pipe & silencer, as it is a natural process that will happen during usage.
(i) Defects arising from fitment of unauthorised or additional electrical loads.
(j) Motorcycle serviced or repaired at unauthorised service centres.
(k) Motorcycle used for competitions / racing / stage rallying etc.
(l) Electrical component like bulbs, fuses etc., and electronic components failure including ECU due to repairs by arc welding.
(m) Motorcycle found with tampering / drilling / welding mark on any part of the frame.
(n) Normal maintenance operations like adjustment of brakes, cleaning fuel system, engine tune-up and other such adjustments.
(o) Oxidization of buffed/painted/powder coated items etc.
(p) Any damage resulting due to natural disaster i.e earthquake, fire and flood etc.
Use only Royal Enfield approved parts and accessories. Use of certain other manufacturer's performance parts will avoid your new motorcycle warranty.
RE reserves the right to finally decide on all warranty claims.
RE reserves the right to make changes in design of the motorcycle without any obligation to install these changes on previously supplied motorcycles.
